Dr. Scott M. Baker

Nixie Tube Clock

by admin on Feb.05, 2010, under Reviews

This is a product review of the TubeHobby NCV2.1-14 Nixie Tube Clock Kit. For those unfamiliar with nixie tubes, they are a technology that dates from the 1960s. Nixies are glass gas-filled tubes operating on approximately 170 volts DC. Each tube has 10 cathodes, one for each of the numerals 0-9 and one anode. Whereas nixie tubes are rarely seen today, they bring back a nostalgic feel of early electronic technology.

The kit I purchased is called the NCV2.1-14. It uses the IN-14 tube, which is a common and fairly cheap russian tube. The kit is also available in an IN-18 variant using much larger (and much more expensive tubes). Everything is included in the kit except a case; you’ll have to purchase a case yourself. The case I purchased is a “trophy case” from an online trophy case retailer.

The kit was easy to construct using through-hole components, no SMT to worry about. It does of course require a great deal of soldering, but nothing so complex that the amateur should not be able to do it. I found the hardest part was installing the tubes themselves as there are a lot of little wires that have to be threaded through holes in the PCB. Make sure the tubes are straight and true before soldering.

One of the advantages of this clock is that it includes an RS232 serial input where you can connect a GPS receiver. Connecting a GPS will ensure your clock is always accurate. There are many cheap GPS units available, check ebay.

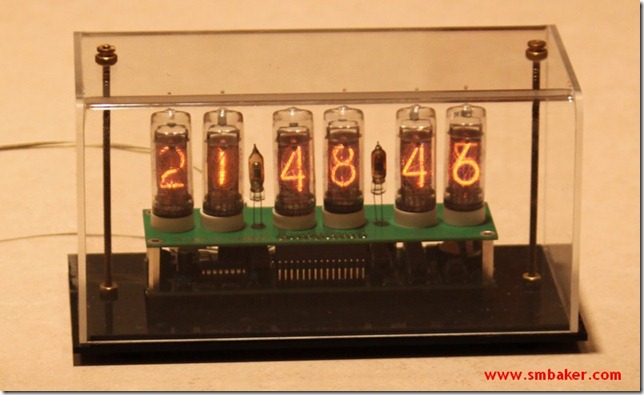

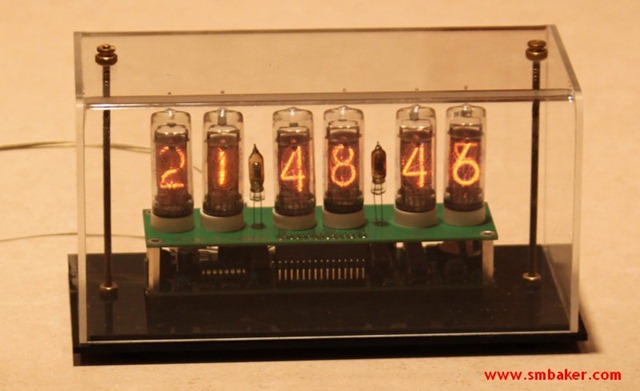

Below is a picture of the completed clock:

nixieclock

GPS-Enabling the Clock

I decided to GPS-enable the clock. My first attempt used an ancient Deluo GM-305 GPS from the junk pile. It worked, but it didn’t work well. It took a long time to acquire the signal, had trouble receiving the signal through walls, and was just plain too large to mount inside the clock enclosure.

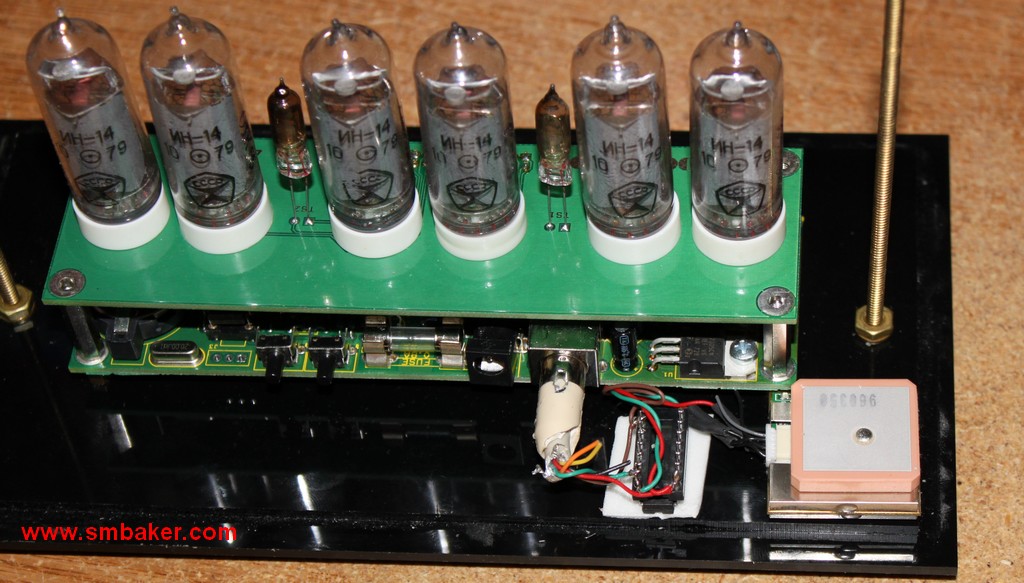

My second attempt used an EM-406A SiRF III Receiver module from Sparkfun electronics (p/n GPS-00465). This module was nice and small and looked like something that would be easy to mount inside the cabinet of the clock. It took a little while to figure out how to wire the module up. The module output TTL-Level signals while the clock was expecting RS-232 level signals. It turns out the voltage wasn’t a big problem, but the signal was inverted (the clock saw highs as lows and lows as highs). To fix this, I had to wire a 7404 hex inverter into the signal to invert the serial data going into the clock. It was a bit of an ugly kludge, but it worked. I used an old mouse extension cable for the connector to plug into the GPS. Here is a picture of the result:

Also have a look at Scott’s Nixie Clock, a shareware program that can display a replica nixie tube clock on your computer screen.
